Hold on Tight Thrill ride. With the most advanced XC suspension and geometry, and rowdy-ready spec, the new Scalpel redefines cross-country speed – again.
Taking aim at XC race podiums and technical trails alike, the Scalpel 4 is always down for fast. It’s built on our advanced Series 1 carbon construction frameset, then set up with a Shimano Deore/XT 12-speed drivetrain, RockShox SID suspension both front and rear, and Stan’s NoTubes Crest S2 rims for reliable speed and control.
The thrill of speed. Winning XC and Marathon races. High-speed trail slaying.
Details |
|
| Platform | Scalpel |
| Model Name | Scalpel 4 |
| Model Code | C24554U |
Frameset |
|
| Frame | Scalpel, Series 1 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc 160mm native |
| Fork | RockShox SID, 120mm, Debonair, 15x110mm thru-axle, tapered steerer, 44mm offset |

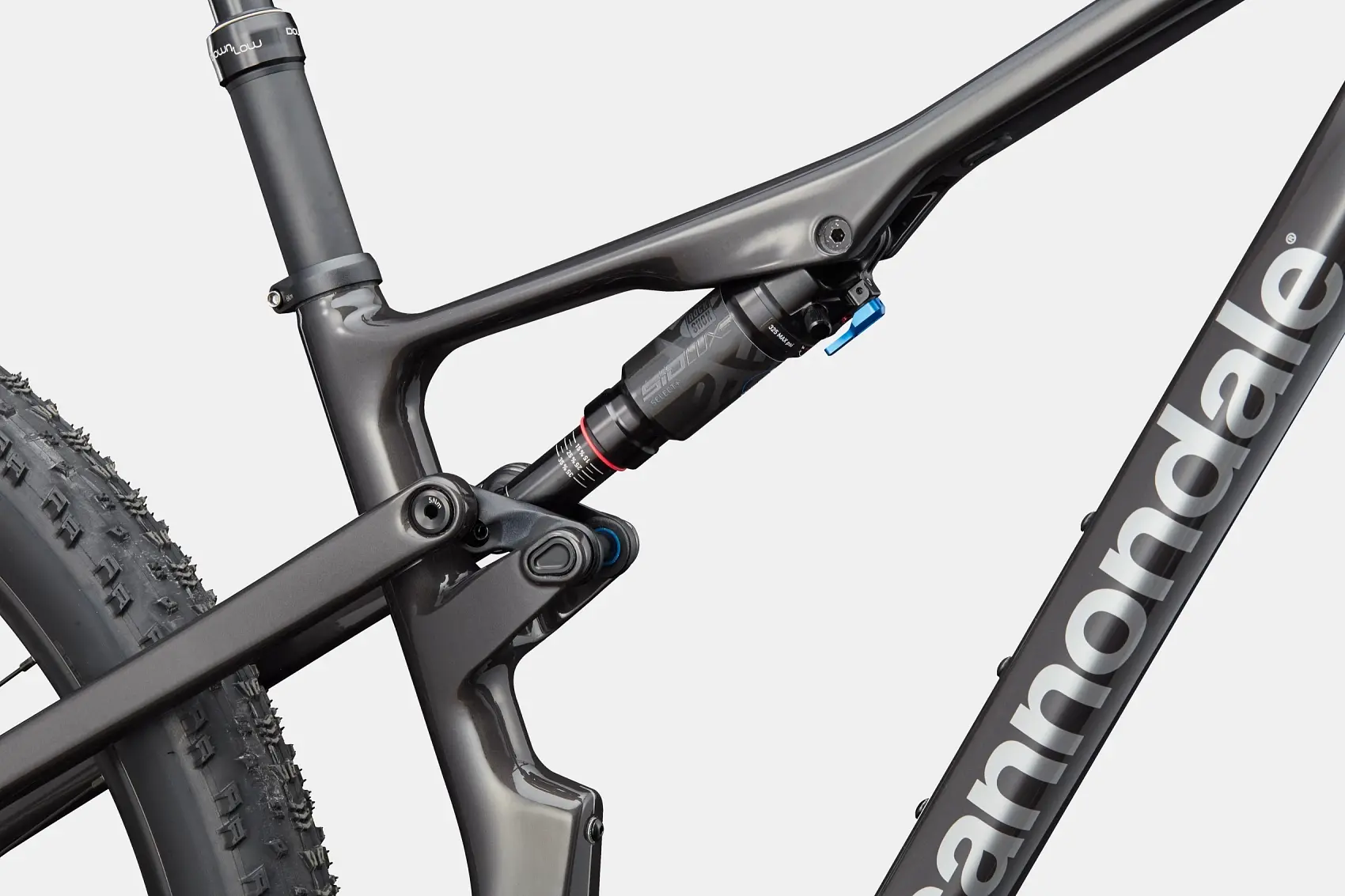

| Rear Shock | RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45 |
| Headset |
Acros ICR
|
Drivetrain |
|

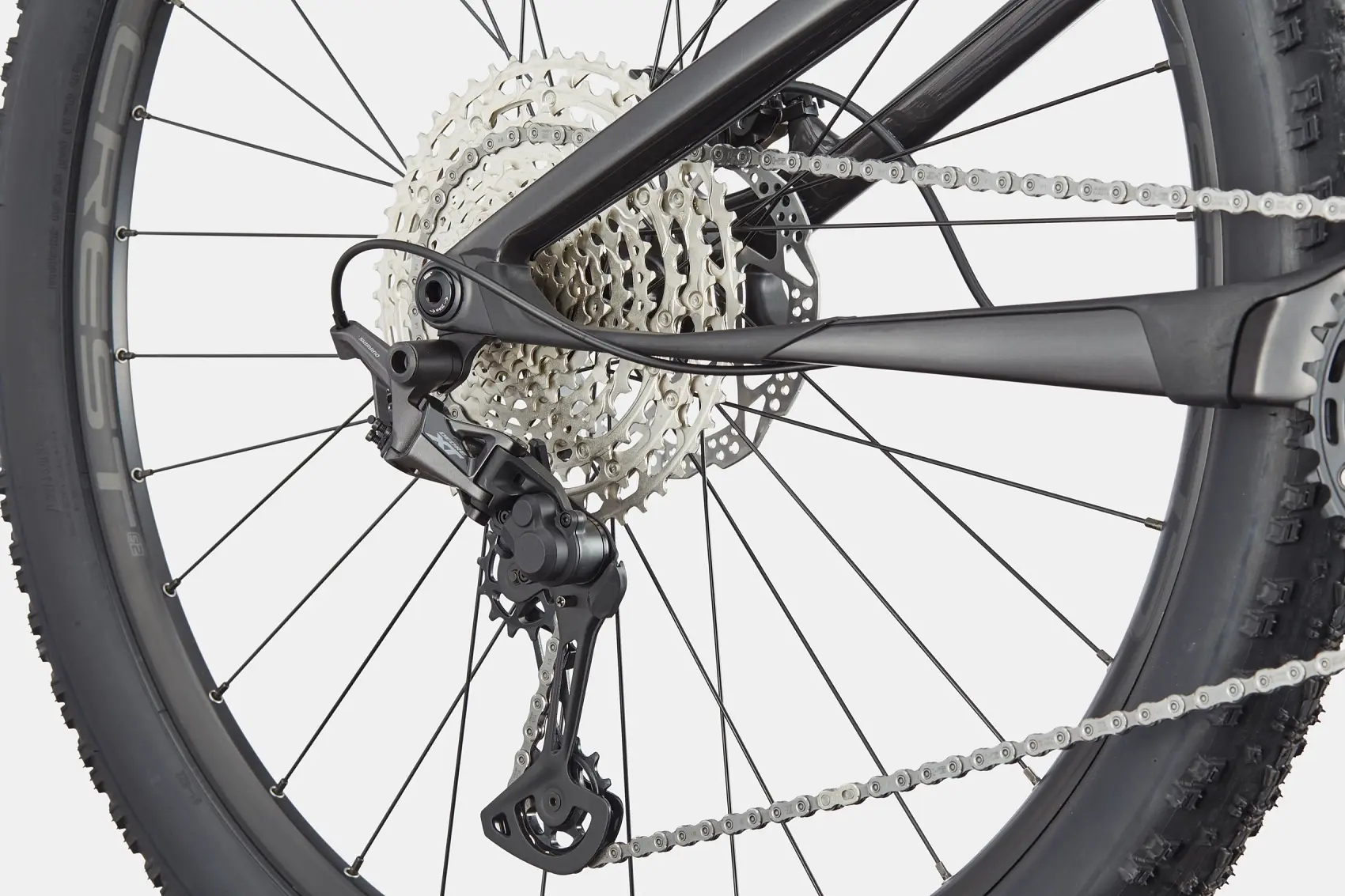

| Rear Derailleur | Shimano XT |
| Shifters | Shimano Deore 6100, 12-speed |
| Chain | Shimano, 12-speed |
| Crank | Shimano M5121, 32T |
| Rear Cogs | Shimano Deore, 10-51, 12-speed |
| Bottom Bracket | Shimano BSA 73mm |
Brakes |
|
| Brakes | Shimano MT501, 180/160mm RT54 rotors |
| Brake Levers | Shimano MT501 |
Wheels |
|
| Rims | Stan's NoTubes Crest S1, 32h, tubeless ready |
| Spokes | Stainless Steel, 14g |
| Tires | (F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready |
| Tire Size | 2.40 |
| Wheel Size | 29 |
| Hubs | (F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT400, 12x148mm thru-axle |
Components |
|

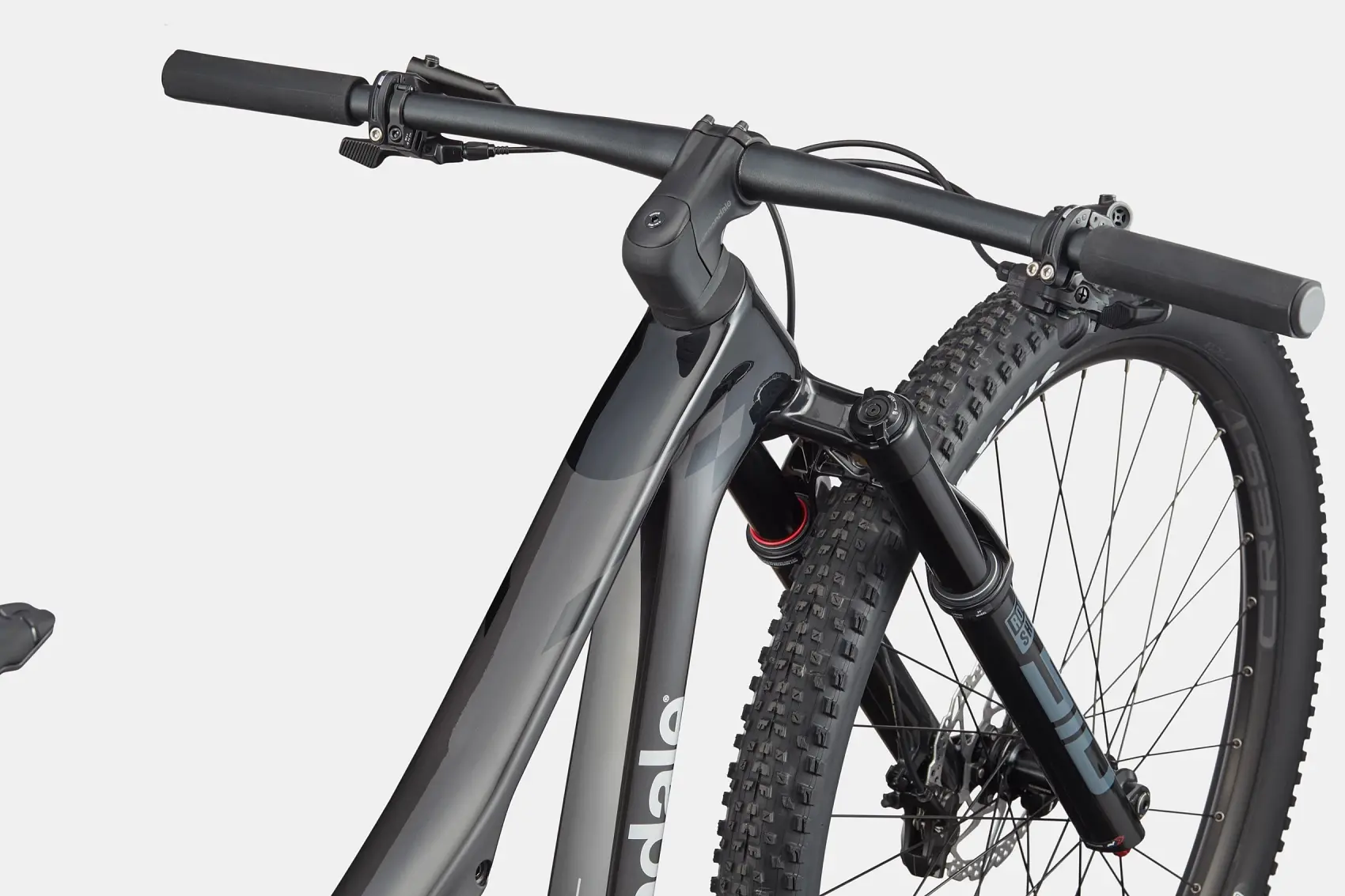

| Handlebar | Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6° |
| Grips | ESI Chunky Silicone, 32mm dia. |

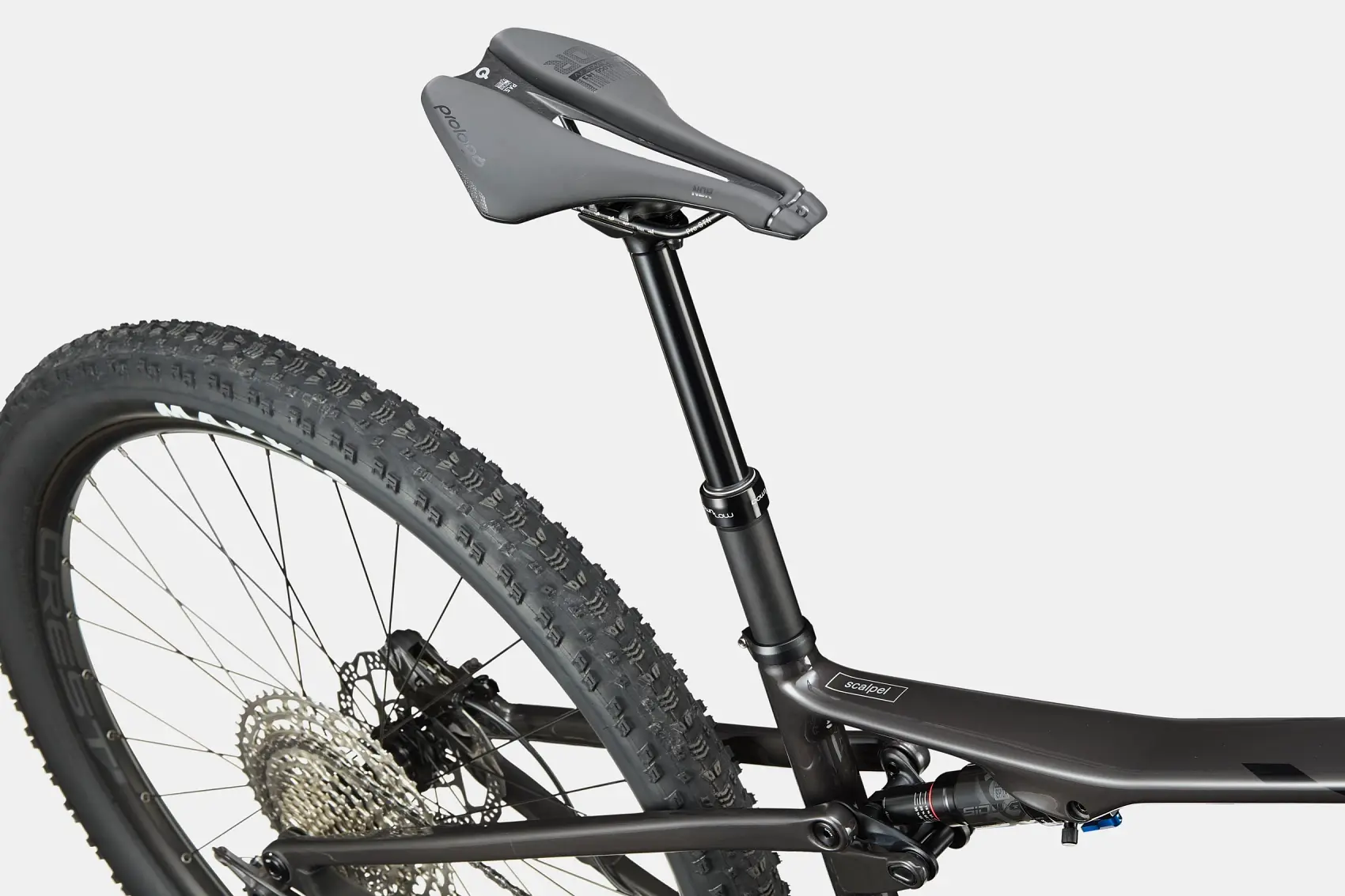

| Saddle | Prologo Dimension NRD, STN rails |
| Seatpost |
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL) |
