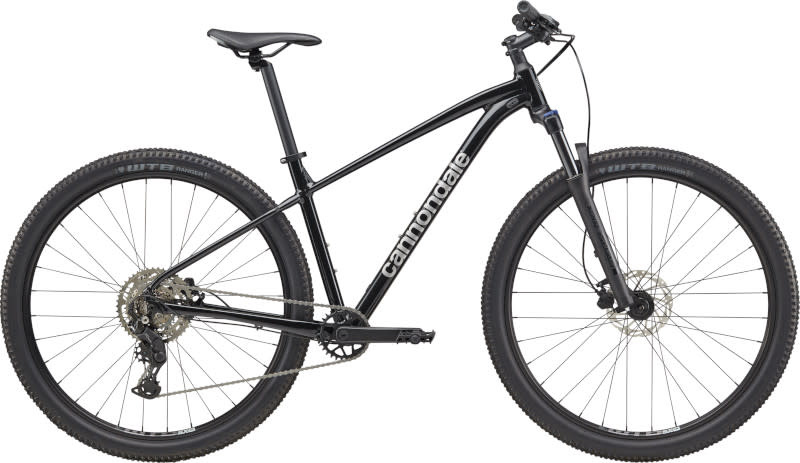

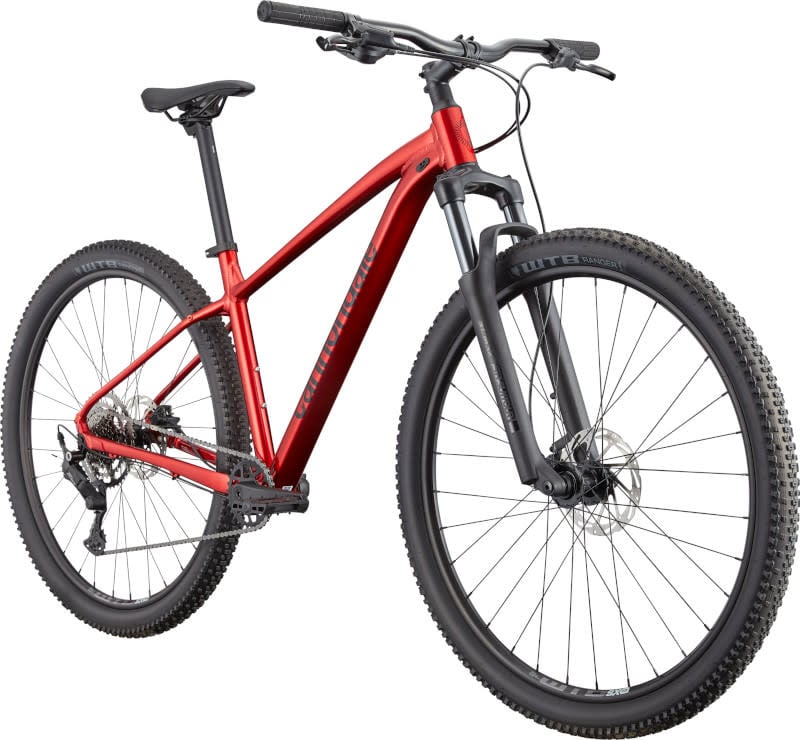

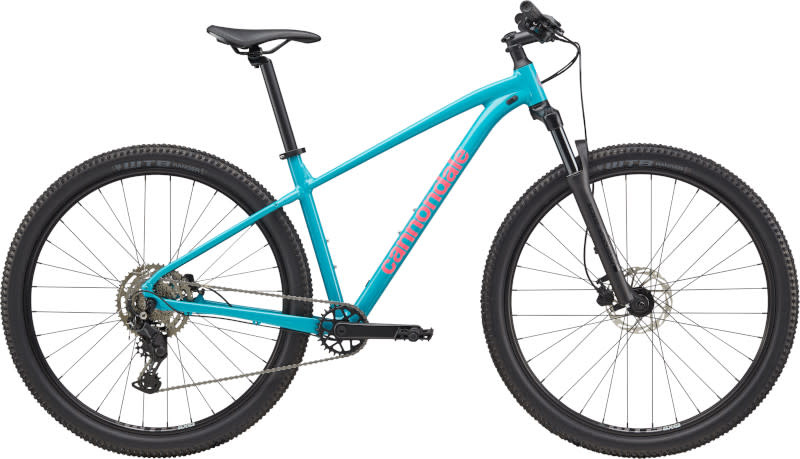

Time to Level Up! The Cannondale Trail is your first-class upgrade to next-level mountain biking. Engineered for fun by a brand trusted by Champions, as happy on dirt as it is on the street—Trail is game for anything!
Key Benefits
Light, Fast, Built to Last. Cannondale’s C3 alloy frame delivers an
easy-to-handle and sporty ride that feels zippy and fun. Lightweight
and built to last — kind of like that one pair of jeans you can’t
stop wearing (if your jeans came with a lifetime warranty).
Shifting Made Simple. Ditch front derailleur and the clunky
front shifters. The 1x drivetrain lets you focus on getting rad,
not fiddling with gears. With fewer moving parts, it ensures
smooth, reliable shifting for effortless climbs and descents.
We’ve Got Your Back(side). Comfortable, confidence-
boosting geometry and responsive handling mean more
smiles per mile, whether you're cruising or charging
Details |
|
Platform | Trail |

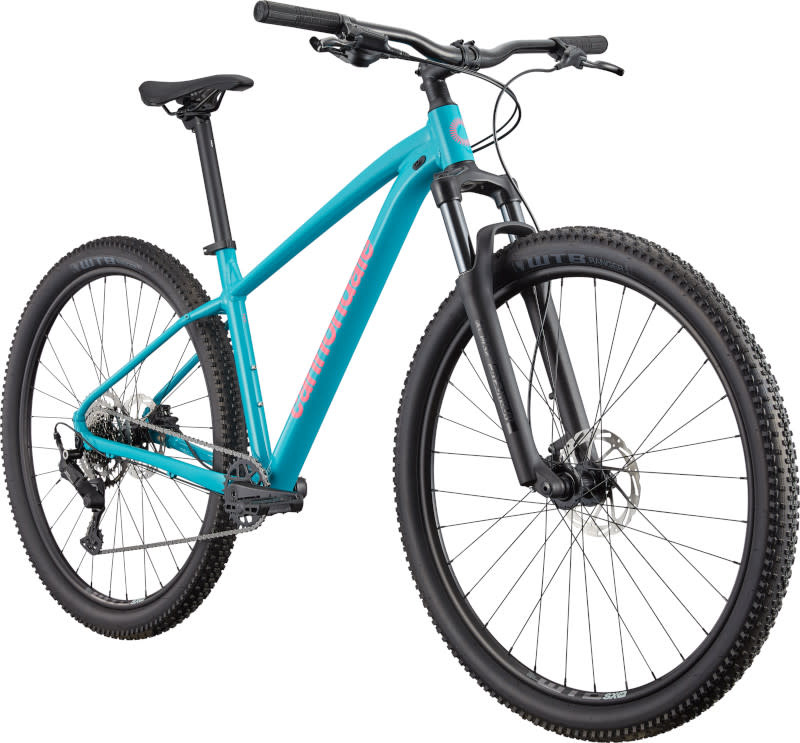

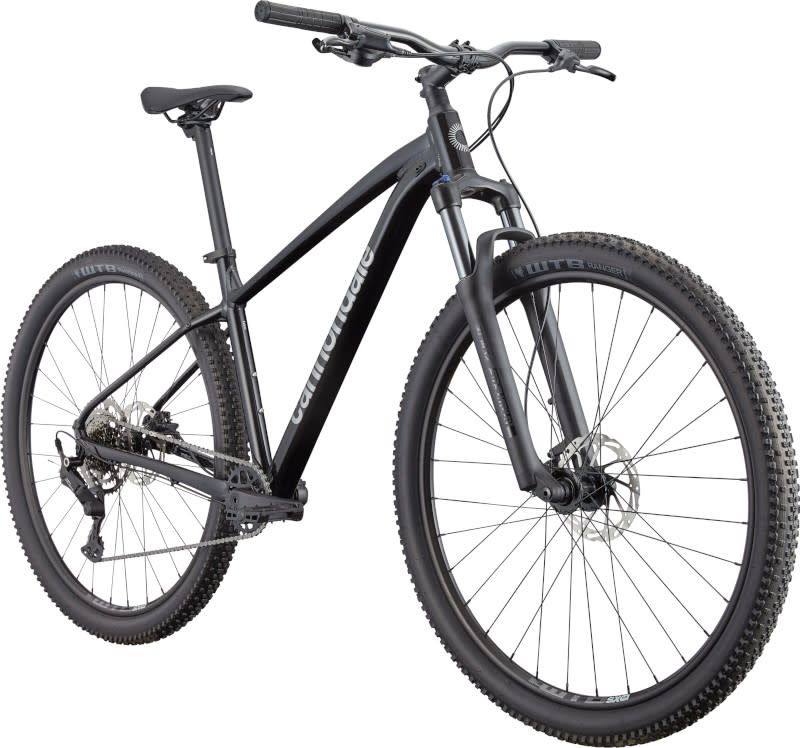

Model Name | Trail 2 |
Model Code | C26065U |
Frameset |
|

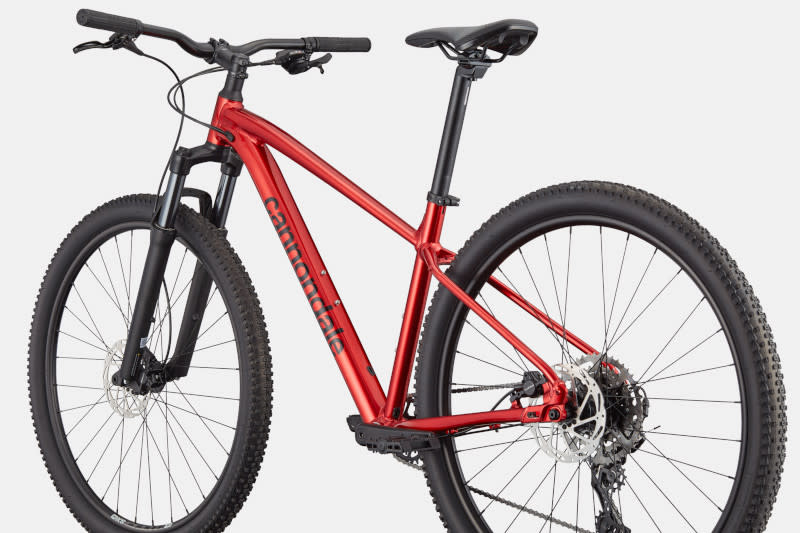

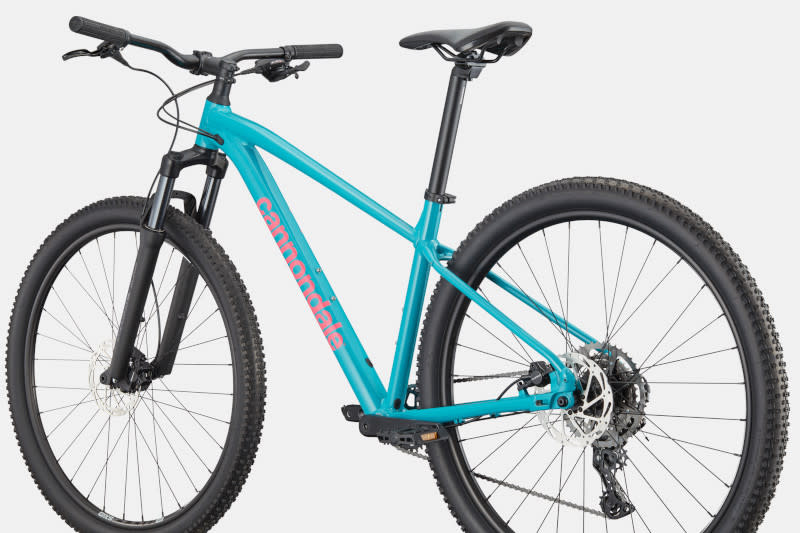

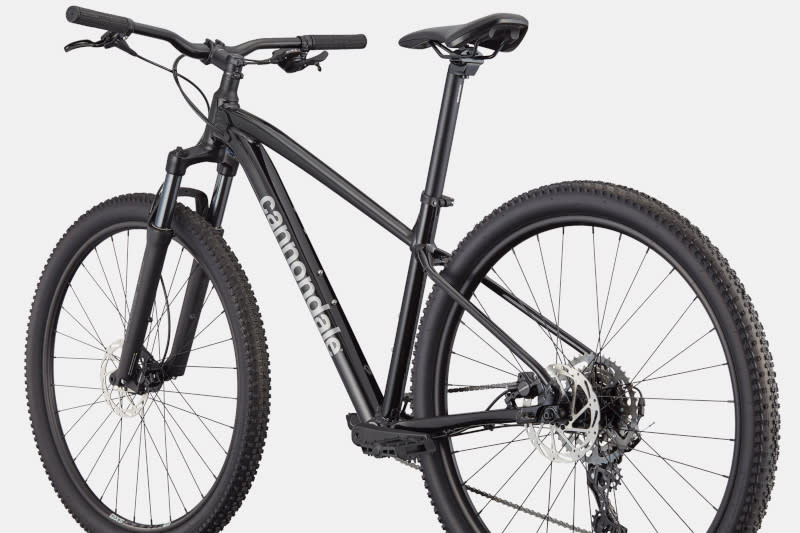

Frame | Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL) |
Fork | SR Suntour XCM, 100mm, coil, 42mm offset (27.5") 46mm offset (29") |
Headset |
Semi-Integrated, 1-1/8"
|
Drivetrain |
|
Rear Derailleur | Shimano CUES U4000 |
Shifters | Shimano CUES U4000, 9-speed |
Chain | KMC X9, 9-speed |
Crank | Prowheel, Charm 30T |
Rear Cogs | Shimano CUES, 11-46, 9-speed |
Bottom Bracket | ProWheel, square taper |
Brakes |
|
Brakes | Tektro M275 hydraulic disc, 160/160mm rotors |
Brake Levers | Tektro hydraulic disc |
Wheels |
|
Rims | WTB SX19, 32h |
Spokes | Stainless steel, 14g |
Tires | WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL) |
Tire Size | 2.25 |
Wheel Size | 27.5 (XS,S) / 29 (M, L, XL) |
Hubs | (F) Formula DC-51, 15x100mm (R) Formula DC-1422, 12x142mm |
Components |
|

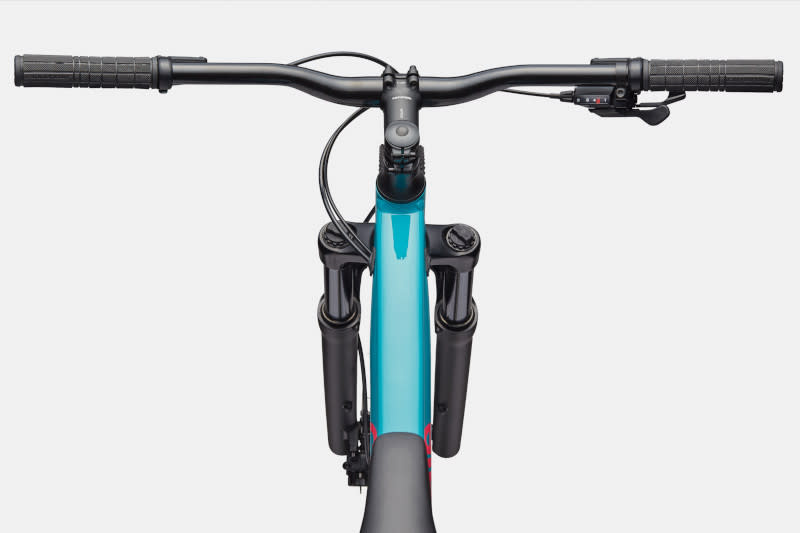

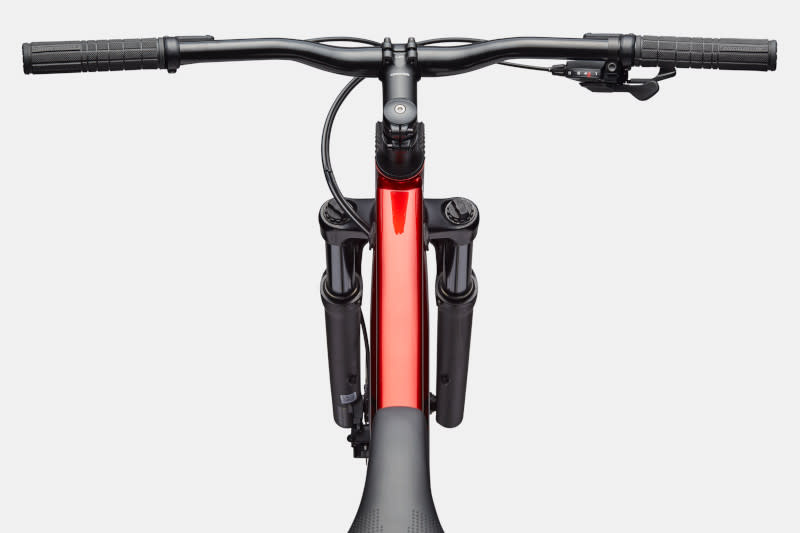

Handlebar | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
Stem | Cannondale 4, 6061 Alloy, 31.8, 6° |
Grips | Cannondale |
Saddle | Cannondale Trail |
Seatpost | Cannondale 4, 6061 Alloy, 31.6 |
