Pure Power Metal. A trail-slaying aluminum e-mountain bike, ready to crank up the fun factor on any terrain, anywhere.
In the mountains
Trail-riding fun
Details |
|
| Platform | Moterra Neo |
| Model Name | Moterra S3 |
| Model Code |
C65233U
|
Frameset |
|
| Frame | 150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube |
| Fork | SR Suntour Zeron 36 Boost, 140mm, Air, rebound adjust,tapered steerer, 44 mm offset |
| Headset |
Integrated, 1-1/8 to 1.5", sealed bearings
|

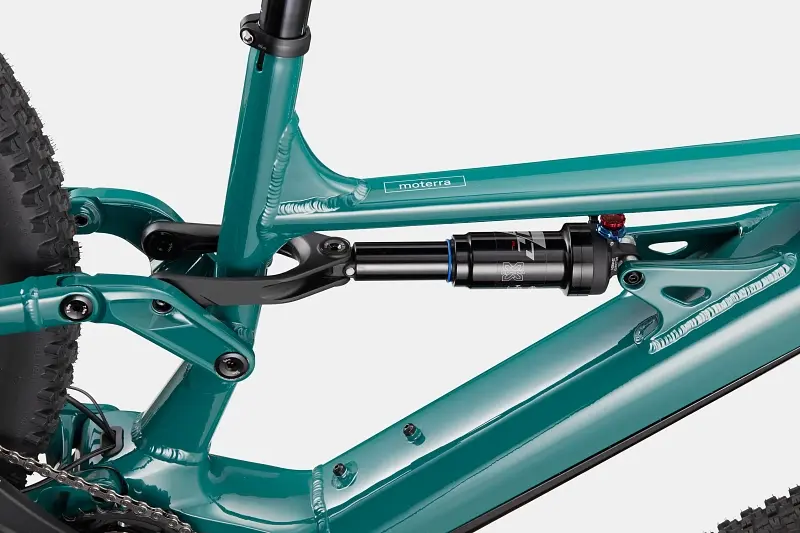

| Rear Shock |
X-Fusion O2 Pro Air, adjustable rebound, lock-out
|
|
|
|
E- System |
|
| Drive Unit |

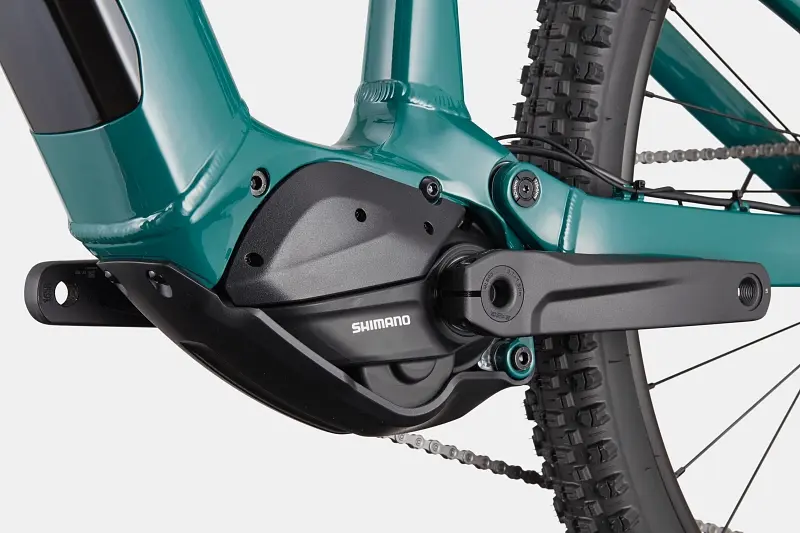

Shimano EP6
|
| Battery |
Shimano BT-EN8036, 630Wh
|
| Charger | Shimano Battery Charger 2A |

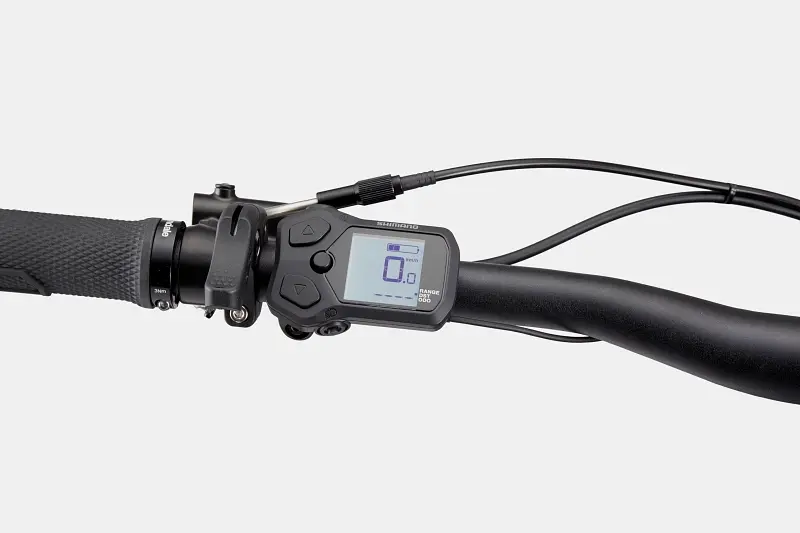

| Display | Shimano SC-EN500 |
Drivetrain |
|

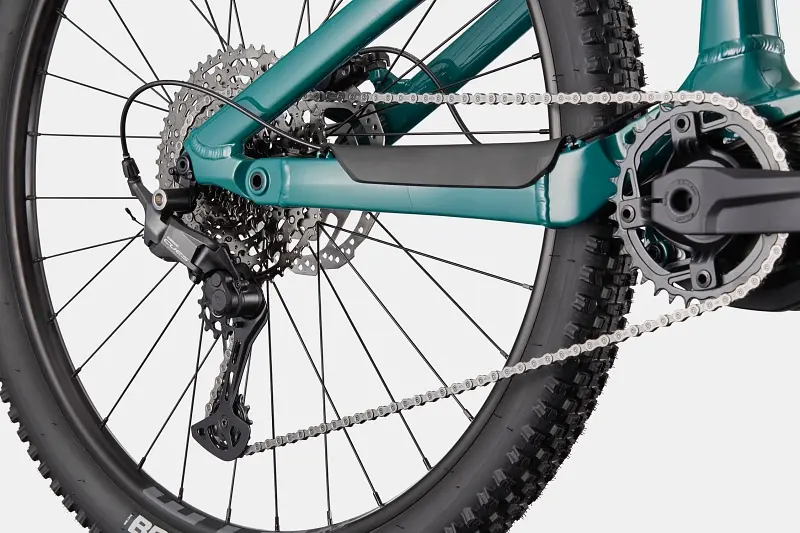

| Rear Derailleur | Shimano CUES U6000, 11-speed |
| Shifters | Shimano CUES U6000, trigger style, 11-speed |
| Chain | Shimano LG500 Linkglide, 11-speed |
| Crank | FSA E-Bike for Shimano, 165mm, 34T |
| Rear Cogs | Shimano CUES LG400, 11-50, 11-speed |
Brakes |
|
| Brakes | Shimano MT200 hydraulic disc, 180/180mm RT10 rotors |
| Brake Levers | Shimano MT200 hydraulic disc |
Wheels |
|
| Rims | WTB STX i25 TCS, 32h |
| Spokes |
Stainless Steel, 14g
|
| Tires |
WTB Breakout Comp, 29x2.3", DNA compound
|
| Tire Size | 2.3 |
| Wheel Size | 29 |
| Hubs | (F) Shimano TC500, 15x110mm thru-axle, centerlock / (R) Shimano TC500, 12x148mm thru-axle, centerlock |
Components |
|

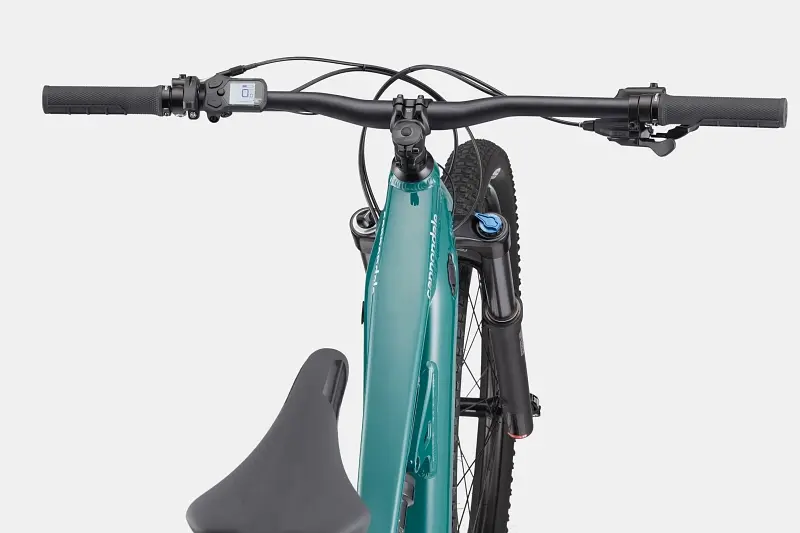

| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Stem | Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6° |
| Grips | Cannondale Locking Grips |
| Saddle | Cannondale Stage 3 |
| Seatpost | TranzX dropper, internal routing, 31.6, 120mm (S), 130mm (M-XL) |
