A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.
Challenging trails, Up and down hills, Out in the elements
Handling, Traction, Efficiency, Durability
Details |
|
| Platform | Moterra Neo |
| Model Name | Moterra Neo 3 |
| Model Code |
C65372U
|
Frameset |
|
| Frame | Moterra Neo, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack mounts |
| Fork | RockShox Yari RC, 150mm, 15x110mm Boost, 44mm offset |
| Headset |
Integrated Sealed Bearing, Tapered
|
| Rear Shock |
RockShox Deluxe Select, DebonAir, 2-Pos mode adjust, adjustable rebound
|
|
|
|
E- System |
|
| Drive Unit |

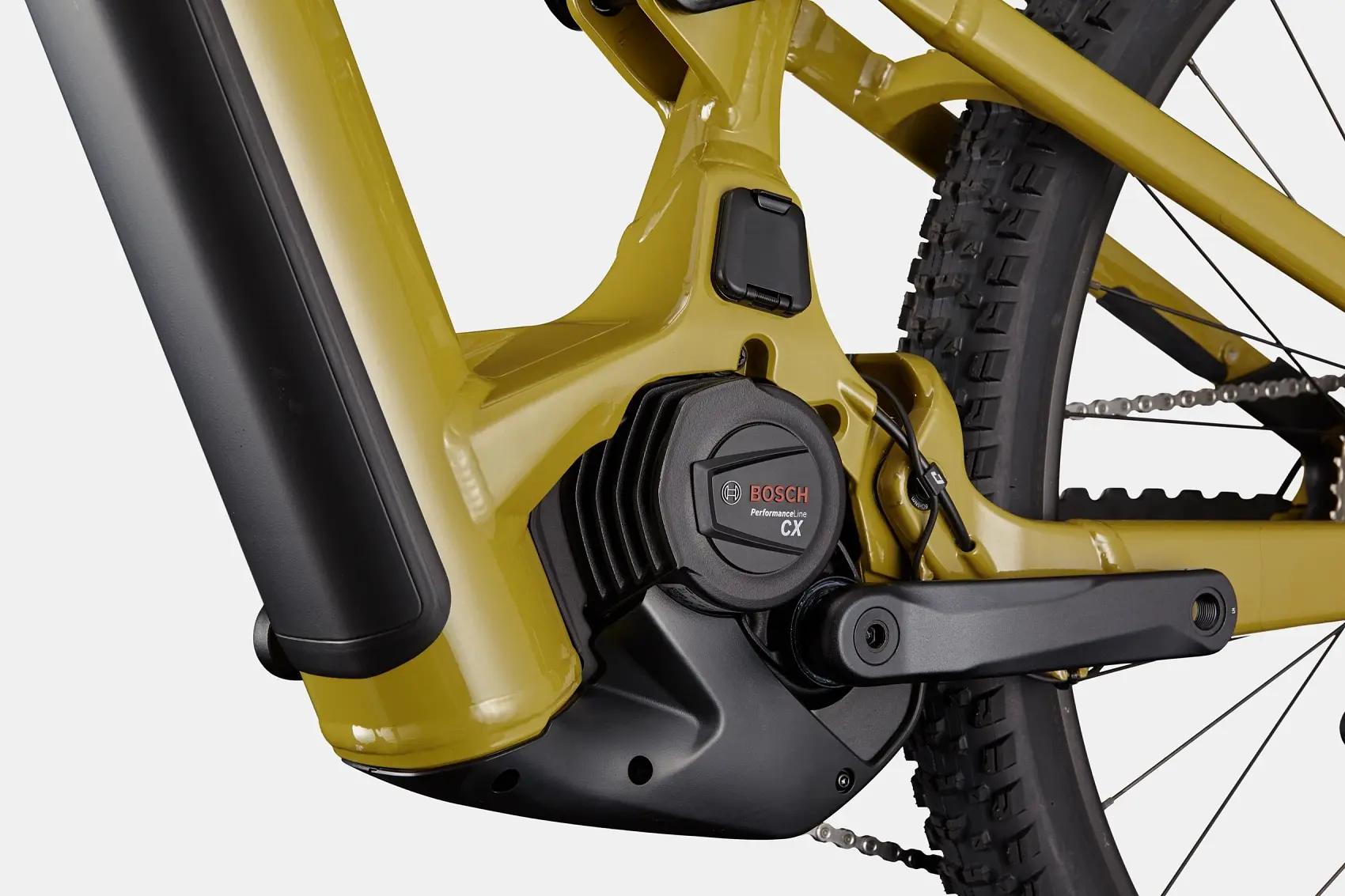

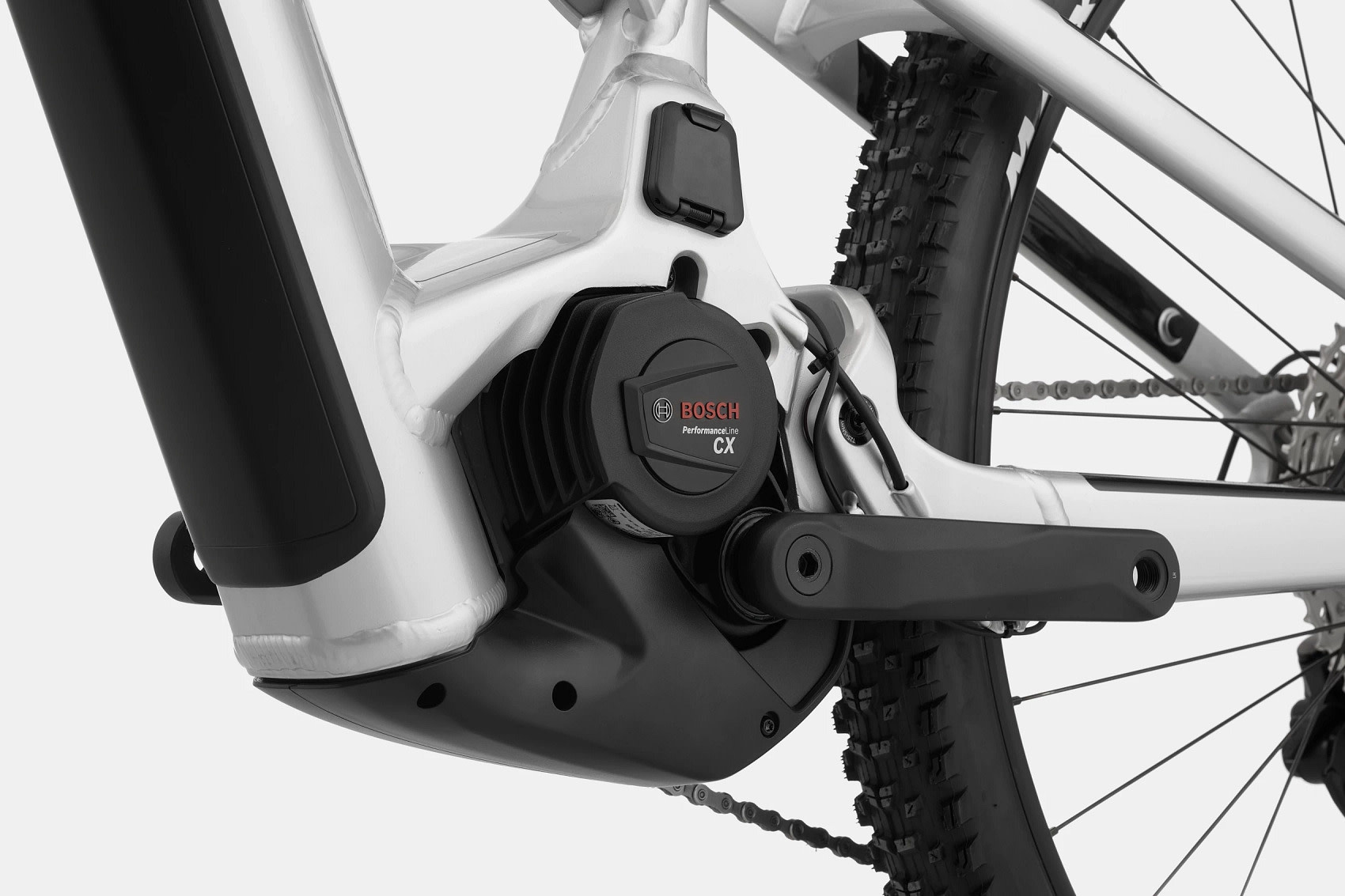

Bosch Performance Line CX 250W
|
| Battery |
Bosch PowerTube 750Wh
|
| Charger | Bosch 4A |
| Display | Bosch Kiox 300 w/ LED remote |
Drivetrain |
|
| Rear Derailleur | Shimano XT |
| Shifters | Shimano Deore M6100, 12-speed |
| Chain | Shimano Deore 6100, 12-speed |
| Crank | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Rear Cogs | Shimano Deore M6100, 10-51, 12-speed |
Brakes |
|
| Brakes | Shimano MT420 4-piston hydraulic disc, 203/203mm rotors |
| Brake Levers | Shimano MT401 hydraulic disc |
Wheels |
|
| Rims | WTB ST i30 TCS, 32h, tubeless ready |
| Spokes |
Stainless Steel, 14g
|
| Tires |
(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready
|
| Tire Size | 2.6 |
| Wheel Size | 29 |
| Hubs | (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |
Components |
|
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Stem | Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7° |
| Grips | Fabric FunGuy |
| Saddle | Fabric Scoop Shallow Sport, steel rails |
| Seatpost | TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL) |
