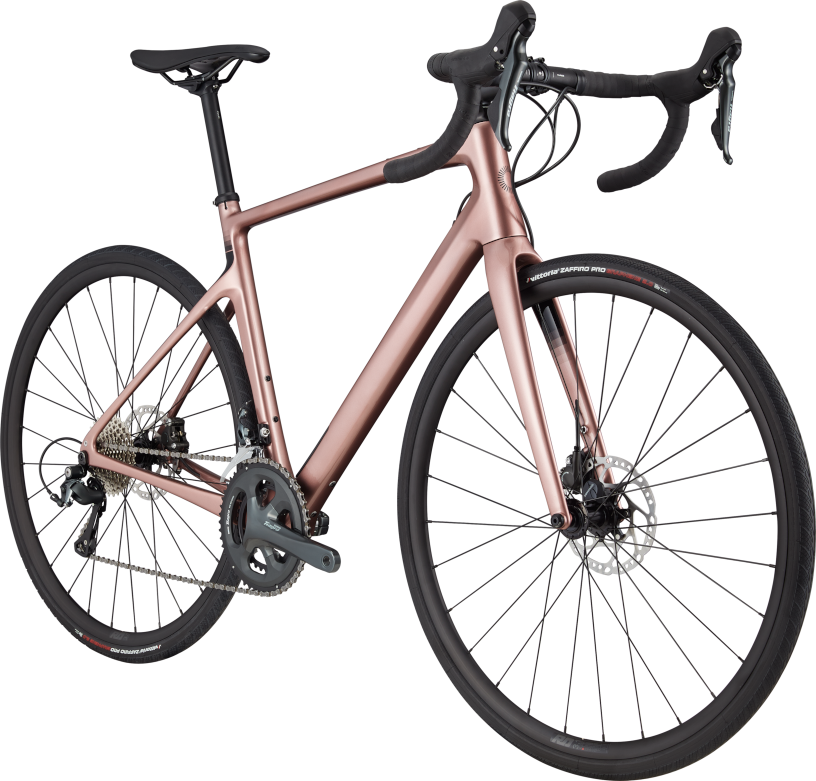

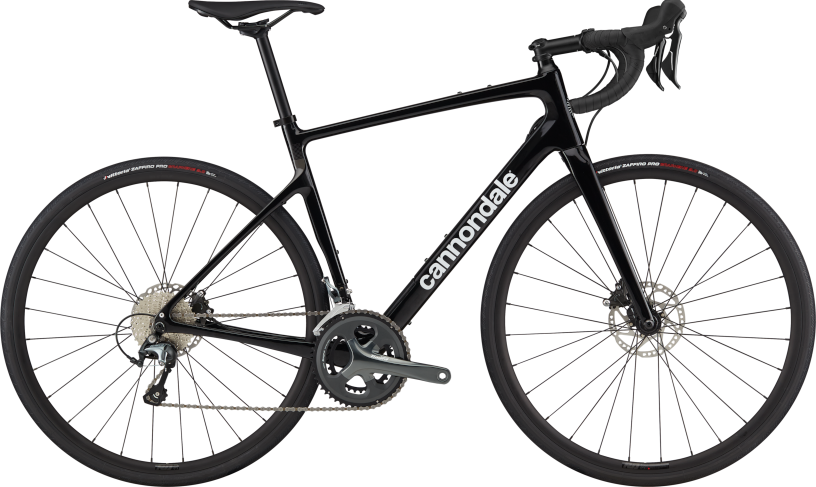

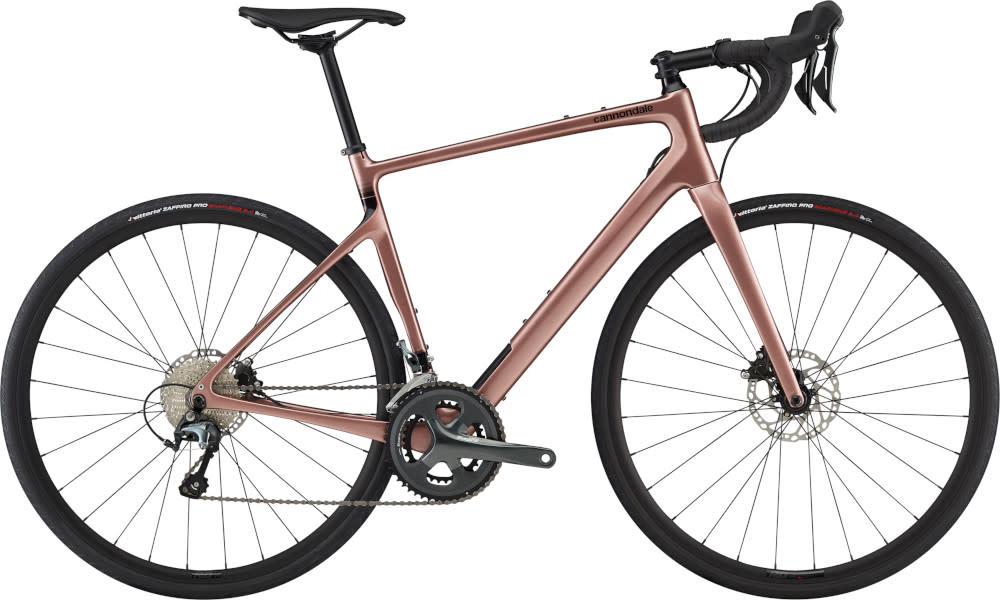

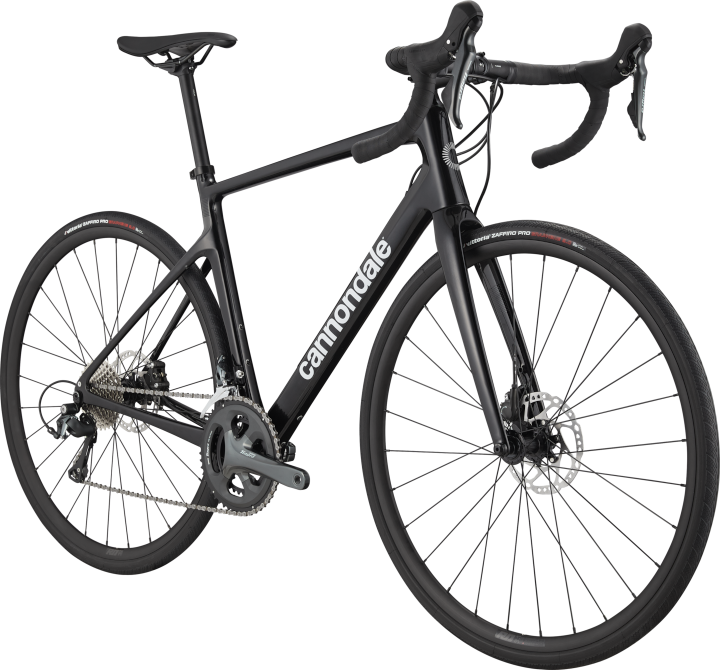

Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – our most comfortable, all-around, up-for-anything, pure road machine.
Details |
|
| Platform | Synapse Carbon |
| Model Name | Synapse Carbon 4 |
| Model Code | C12302U |
Frameset |
|
| Frame | Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts |
| Fork | Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts |
| Headset |
Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"
|
Drivetrain |
|
| Front Derailleur | Shimano Tiagra, braze-on |

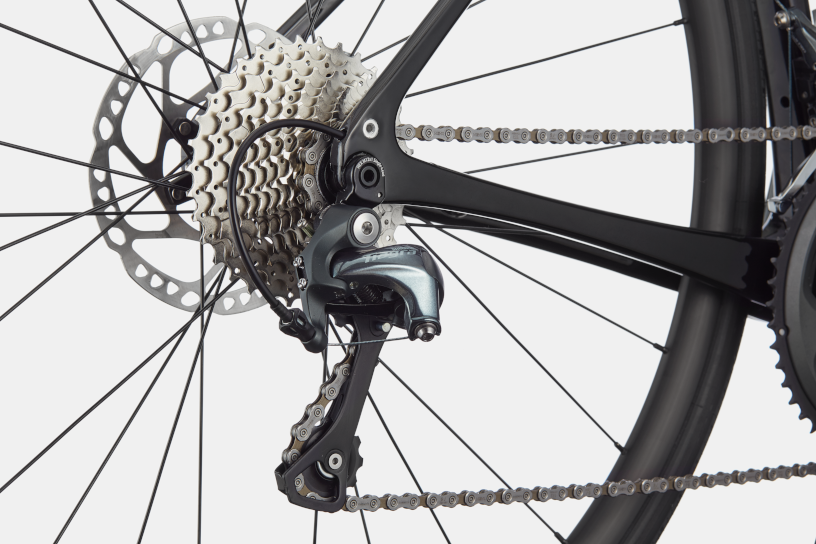

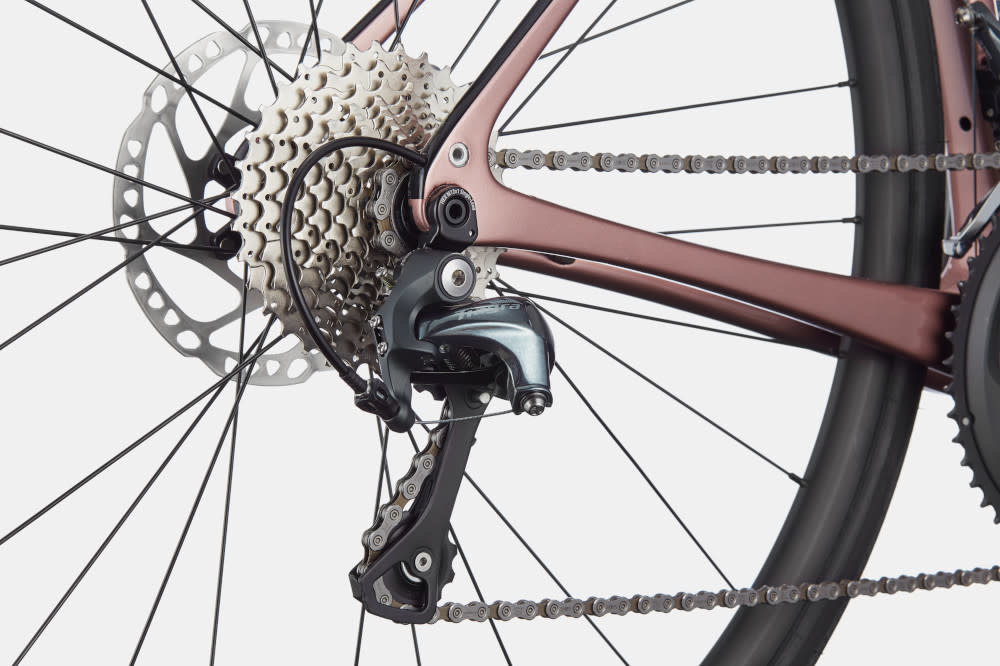

| Rear Derailleur | Shimano Tiagra GS |
| Shifters | Shimano Tiagra hydraulic disc, 10-speed |
| Chain | Shimano HG54, 10-speed |

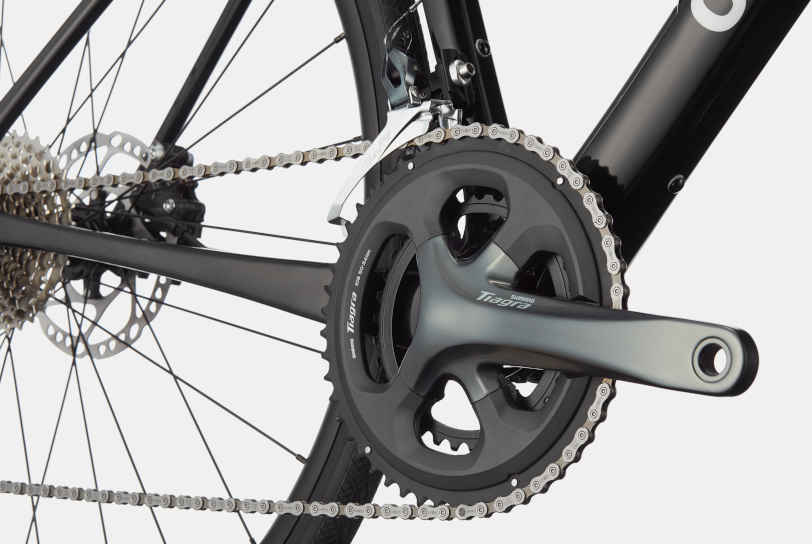

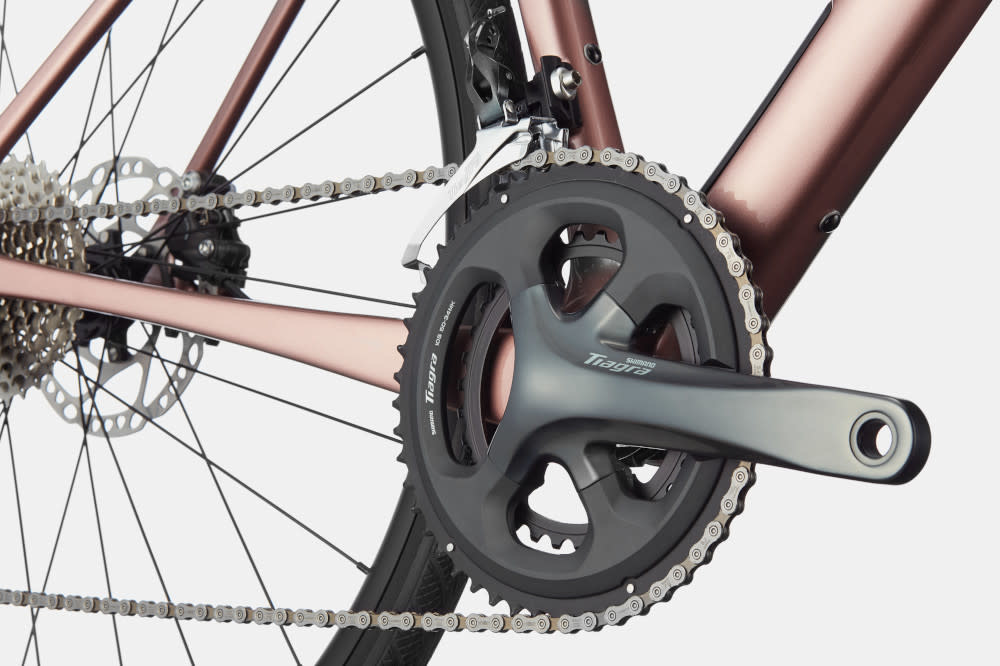

| Crank | Shimano Tiagra, BSA, 50/34 |
| Rear Cogs | Shimano Tiagra, 11-34, 10-speed |
| Bottom Bracket | Shimano BSA |
Brakes |
|
| Brakes | Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors |
| Brake Levers | Shimano Tiagra hydraulic |
Wheels |
|
| Rims | RD 3.1, 28h, 21mm IW |
| Spokes | Stainless Steel, 14g |
| Tires | Vittoria Zaffiro Pro Reflective, 700 x 30c |
| Tire Size | 30 |
| Wheel Size | 700c |
| Hubs | (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock |
Components |
|

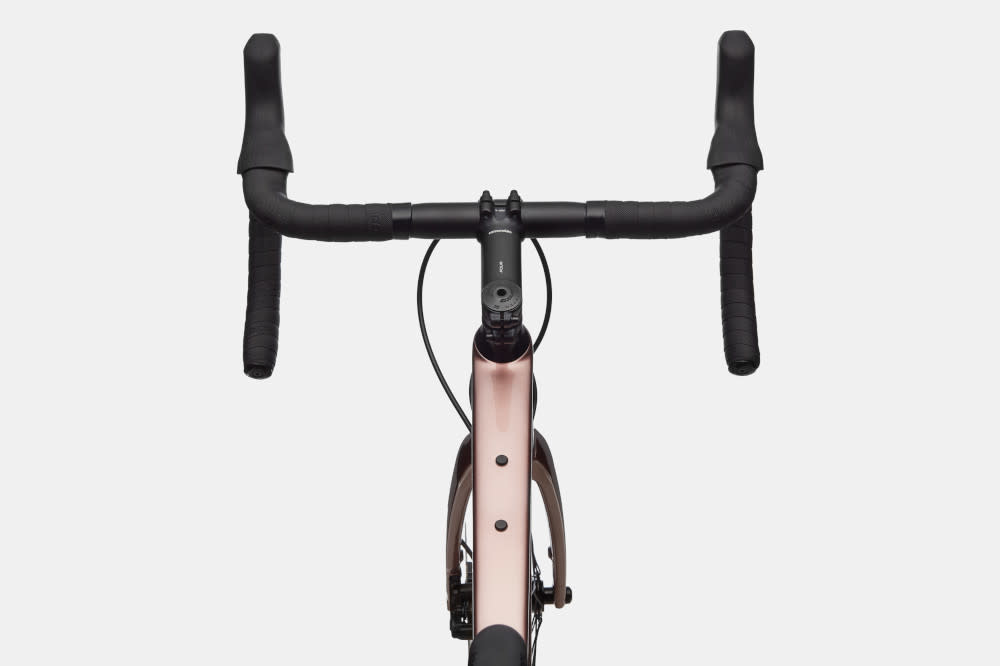

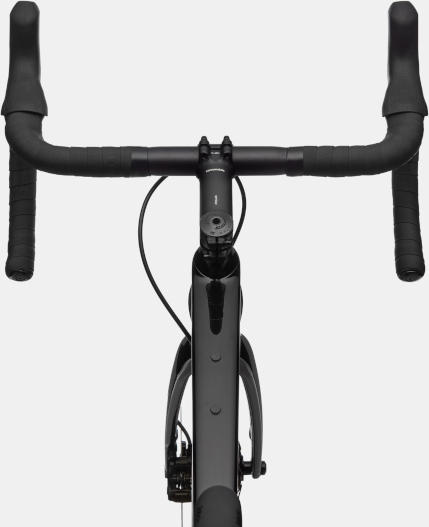

| Handlebar | Cannondale 3, 6061 Alloy, Compact |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Grips | Fabric Knurl Bar Tape |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2 x 350mm (48-56), 400mm (58-61) |
| Connectivity | |
| Wheel Sensor | Cannondale Wheel Sensor |
| Extra | |
| Extra 1 | Trainer Compatible Thru-Axle |
